K K Sharma Solutions for Chapter: Oscillations, Exercise 1: TOPICWISE QUESTIONS

Author:K K Sharma

K K Sharma Physics Solutions for Exercise - K K Sharma Solutions for Chapter: Oscillations, Exercise 1: TOPICWISE QUESTIONS

Attempt the practice questions on Chapter 4: Oscillations, Exercise 1: TOPICWISE QUESTIONS with hints and solutions to strengthen your understanding. Chapterwise/Topicwise Daily Practice Problems (DPP) Waves and Thermodynamics NEET solutions are prepared by Experienced Embibe Experts.

Questions from K K Sharma Solutions for Chapter: Oscillations, Exercise 1: TOPICWISE QUESTIONS with Hints & Solutions

EASY
NEET
IMPORTANT

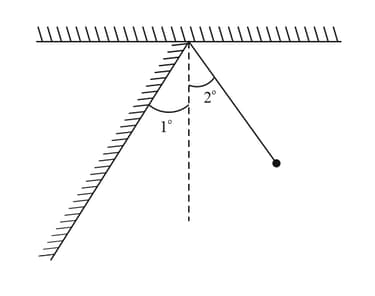

A simple pendulum of length1 m is allowed to oscillate with amplitude 2o. It collides elastically with a wall inclined at 1o to the vertical. Its time period will be (useg=π2)

Question Image

MEDIUM
NEET
IMPORTANT

A small ball is suspended by a thread of length l=1 m at the point O on the wall, forming a small angle α=2° with the vertical (as shown in figure). Then the thread with the ball was deviated through a small angle β=4° and set free. Assuming the collision of the ball against the wall to be perfectly elastic, find the oscillation period of such a pendulum. (Take g=π2 m s-2)

Question Image

MEDIUM
NEET
IMPORTANT

A simple pendulum 50cm long is suspended from the roof of a cart accelerating in the horizontal direction with constant acceleration 3g m s-2. The period of small oscillations of the pendulum about its equilibrium position is:

(g=π2m s-2)

 Question Image

EASY
NEET
IMPORTANT

The time period of a simple pendulum, whose bob is a hollow metallic sphere, is T. The time period of another simple pendulum is T1 when the bob is filled with sand T2 when it is filled with mercury and T3 when it is half-filled with mercury. Which of the following is true?

Question Image

MEDIUM
NEET
IMPORTANT

Two light strings each of length l, are fixed at point A and B on a  fixed horizontal rod xy. A small bob is tied by both strings and in equilibrium, the strings are making angle 45° with the rod. If the bob is slightly displaced normal to the plane of the strings and released, then the period of the resulting small oscillation will be:

Question Image



MEDIUM
NEET
IMPORTANT

A uniform square plate of side a is hinged at one of its corners. It is suspended such that it can rotate about horizontal axis lying in its plane and passing through its center. Find out its time period of small oscillation about its equilibrium position.

Question Image

MEDIUM
NEET
IMPORTANT

A meter stick swinging in vertical plane about a fixed horizontal axis passing through its one end undergoes small oscillation of frequency f0. If the bottom half of the stick was cut off, then its new frequency of small oscillation will be?

MEDIUM
NEET
IMPORTANT

Pendulum A is a physical pendulum made up of thin rigid and uniform rod whose length is L. One end of this rod is attached to the ceiling by a frictionless hinge so that rod is free to swing back and forth. Pendulum B is a simple pendulum whose length is also L. The ratio ΤATB for small angular oscillations is

Question Image
