HARD
JEE Main/Advance
IMPORTANT
Earn 100

A block attached to a spring, pulled by a constant horizontal force, is kept on a smooth surface as shown in the figure. Initially, the spring is in its natural state. Then the maximum positive work that the applied force F can do is: [Given that spring does not break]

Question Image

50% studentsanswered this correctly

Important Questions on Work, Energy and Power

HARD
JEE Main/Advance
IMPORTANT

A block of mass m is placed inside a smooth hollow cylinder of radius R whose axis is kept horizontally. Initially, the system was at rest. Now cylinder is given constant acceleration 2 g in the horizontal direction by an external agent. The maximum angular displacement of the block with the vertical is:

Question Image

HARD
JEE Main/Advance
IMPORTANT

In the figure, a block slides along a track from one level to a higher level, by moving through an intermediate valley. The track is frictionless until the block reaches the higher level. There a frictional force stops the block in a distance d. The block’s initial speed v0 is 6 m s-1, the height difference h is 1.1 m and the coefficient of kinetic friction μ is 0.6. The value of d is :

Question Image



MEDIUM
JEE Main/Advance
IMPORTANT

A small particle slides along a track with elevated ends and a flat central part, as shown in the figure. The flat part has a length 3 m. The curved portions of the track are frictionless, but for the flat part, the coefficient of kinetic friction is μ = 0.2.The particle is released at point A, which is at a height h =1.5 m above the flat part of the track. The position where the particle finally come to rest is:

Question Image

HARD
JEE Main/Advance
IMPORTANT

A block of mass 50 kg is projected horizontally on a rough horizontal floor. The coefficient of friction between the block and the floor is 0.1. The block strikes a light spring of stiffness k= 100 N m-1 with a velocity 2 m s-1. The maximum compression of the spring is:

Question Image



HARD
JEE Main/Advance
IMPORTANT
A car of mass m starts moving so that its velocity varies according to the law v=βs, where β is a constant, and s is the distance covered. The total work performed by all the forces which are acting on the car during the first t seconds after the beginning of motion is
EASY
JEE Main/Advance
IMPORTANT
An open knife edge of mass m is dropped from a height h on a wooden floor. If the blade penetrates upto the depth d into the wood, the average resistance offered by the wood to the knife edge is
HARD
JEE Main/Advance
IMPORTANT

A 10 kg small block is pulled in the vertical plane along a frictionless surface in the form of an arc of a circle of radius 10 m. The applied force is of 200 N as shown in the figure. If the block started from rest at A, the speed at B would be: (g = 10 m s-2)

Question Image

HARD
JEE Main/Advance
IMPORTANT

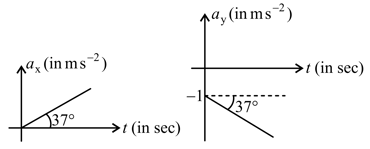

In the figure the variation of components of acceleration of a particle of mass 1 kg is shown w.r.t. time. The initial velocity of the particle is u=-3i^+4j^ m s-1.The total work done by the resultant force on the particle in the time interval from t=0 to t=4 seconds is :

Question Image
