An electrical device draws 2 kW, 50 kV power from AC mains voltage 223 V ( r m s ) . The current differs (lags) in phase by ϕ tan ϕ = - 3 4 as compared to voltage. Find (i) R , (ii) X C - X L , and (iii) I M . Another device has twice the values for R , X C and X L . How are the answers affected?

P o w e r P = V 2 Z ⇒ 50 , 000 2000 = 25 = Z Z 2 = R 2 + X C - X L 2 = 625 tan ϕ = X C - X L R = - 3 4 625 = R 2 + - 3 4 R 2 = 25 16 R 2 = 400 ⇒ R = 20 Ω X C - X L = - 15 Ω I = V Z = 223 25 ≃ 9 A . I M = 2 × 9 = 12 . 6 A . If R , X C , X L are all doubled, tan ϕ does not change. Z is doubled, current is halved. Power drawn is halved.

For an L C R circuit driven at frequency ω, the equation reads L d i d t + R i + q C = v t = v m sin ω t Multiply the equation by i and simplify where possible.

L t d t d t + R t 2 + q t c = v t ; L t d t d t = d d t 1 2 L t 2 = rate of change of energy stored in an inductor. R i 2 = joule heating loss q C t = d d t q 2 2 C = rate of change of energy stored in the capacitor. v t = rate at which driving force pours in energy. It goes into (i) ohmic loss and (ii) increase of stored energy. ∫ 0 T d t d d t 1 2 t 2 + q 2 C + ∫ 0 T R t 2 d t = ∫ 0 T v t d t 0 + + v e = ∫ 0 T v t d t ∫ 0 T v t d t > 0 if phase difference, a constant is acute.

EASY

12th CBSE

IMPORTANT

Earn 100

A coil of $0.01$ henry inductance and $1$ ohm resistance is connected to $200$ volt, $50 H z$ ac supply. Find the impedance of the circuit and time lag between max. alternating voltage and current.

Important Questions on Alternating Current

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>SA>Q 7.24

60 W

load is connected to the secondary of a transformer whose primary draws line voltage. If a current of

0.54 A

flows in the load, what is the current in the primary coil? Comment on the type of transformer being used.

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>SA>Q 7.25

Explain why the reactance provided by a capacitor to an alternating current decreases with increasing frequency.

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>SA>Q 7.26

Explain why the reactance offered by an inductor increases with the increasing frequency of an alternating voltage.

HARD

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>LA>Q 7.27

An electrical device draws

2 kW, 50 kV

power from AC mains voltage

223 V (r m s)

. The current differs (lags) in phase by

ϕ (\tan ϕ = \frac{- 3}{4})

as compared to voltage. Find (i)

R

, (ii)

X_{C} - X_{L}

, and (iii)

I_{M}

. Another device has twice the values for

R, X_{C}

and

X_{L}

. How are the answers affected?

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>LA>Q 7.28

1 MW

power is to be delivered from a power station to a town

10 km

away. One uses a pair of

Cu

wires of radius

0.5 c m

for this purpose. Calculate the fraction of ohmic losses to the power transmitted if
(i) power is transmitted at

220 V

. Comment on the feasibility of doing this.

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>LA>Q 7.28

$1 MW$ power is to be delivered from a power station to a town $10 km$ away. One uses a pair of $Cu$ wires of radius $0.5 c m$ for this purpose. Calculate the fraction of ohmic losses to the power transmitted if
(ii) a step-up transformer is used to boost the voltage to $11000 V$ , power transmitted, then a step-down transformer is used to bring the voltage to $220 V$ .

MEDIUM

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>LA>Q 7.29

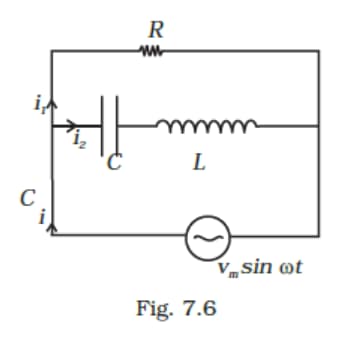

Consider the $L C R$ circuit shown in Fig 7.6. Find the net current $i$ and the phase of $i$ . Show that $i = \frac{v}{Z}$ .
Find the impedence $Z$ for this circuit.

Question Image

HARD

12th CBSE

IMPORTANT

NCERT Exemplar Physics - Class 12>Chapter 7 - Alternating Current>LA>Q 7.3

For an $L C R$ circuit driven at frequency ω, the equation reads

$L \frac{d i}{d t} + R i + \frac{q}{C} = v_{t} = v_{m} \sin ω t$

Multiply the equation by i and simplify where possible.

A coil of 0.01 henry inductance and 1 ohm resistance is connected to 200 volt, 50 Hz ac supply. Find the impedance of the circuit and time lag between max. alternating voltage and current.
