A converging beam of light is incident on a concave lens. The beam converges behind the lens at 15 cm from its centre, in the absence of the lens. Select the correct alternative

66.67% studentsanswered this correctly

Important Questions on Ray Optics and Optical Instruments

MEDIUM
JEE Main/Advance
IMPORTANT

When the space between two glass lenses in combination shown in figure is filled with water, then

Question Image

HARD
JEE Main/Advance
IMPORTANT
Two objects O1 and O2 are placed in front of a lens of focal length f. The objects are placed on the principal axis such that O1O2=x and O2 is closer to the lens. The distance of O2 from lens is greater than its focal length. If their images formed are I1 and I2 such that the distance between them is I1I2=y, then
HARD
JEE Main/Advance
IMPORTANT

. A point object is placed 30 cm in front of an equiconvex lens of radius of curvature 15 cm and made of glass of refractive index 32. On placing a convex mirror of radius of curvature 15 cm behind the lens on image side as shown in figure, the final image is found to coincide with the object. The possible distance x between convex lens and convex mirror is

Question Image

EASY
JEE Main/Advance
IMPORTANT

A converging lens is used to form an image on a screen. When the upper half of the lens is covered by an opaque screen

MEDIUM
JEE Main/Advance
IMPORTANT
A convex lens of focal length 20 cm is placed in front of a convex mirror of focal length 15 cm at a distance of 5 cm. An object of length 2 mm is placed perpendicular to the common axis at a distance of 20 cm from the lens
HARD
JEE Main/Advance
IMPORTANT
A prism with dispersive power ω1 produces dispersion θ. It is combined with another prism of dispersive power ω2 so that the combination does not produce deviation. Select the correct alternative
HARD
JEE Main/Advance
IMPORTANT
A student performed the experiment of determination of focal length of a concave mirror by u-v method using an optical bench of length 1.5 meter. The focal length of the mirror used is 24 cm. The maximum error in the location of the image can be 0.2 cm. The 5 sets of (u, v) values recorded by the student (in cm) are: (42, 56), (48, 48), (60, 40), (66, 33), (78, 39). The data set(s) that cannot come from experiment and is (are) incorrectly recorded, is (are)
HARD
JEE Main/Advance
IMPORTANT

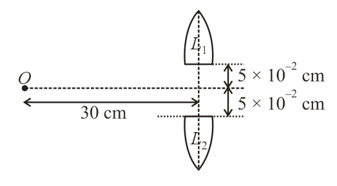

A point object O is placed at a distance of 30 cm from a convex lens of focal length 20 cm, cut into two halves each of which is displaced by 5×10-2 cm as shown. Choose the correct option(s).

Question Image
