A passenger sitting in a bus moving along a circular path experiences a force which is

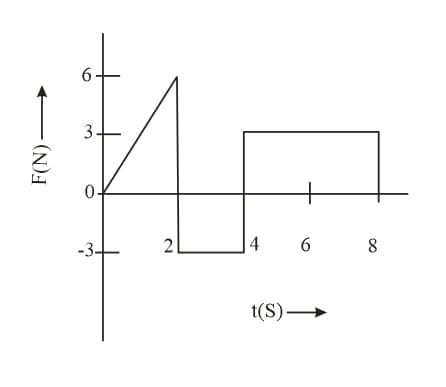

The force $F$ acting on a particle of mass $m$ is indicated by the force-time graph shown below. The change in momentum of the particle over the time interval from zero to $8 \mathrm{s}$ is,

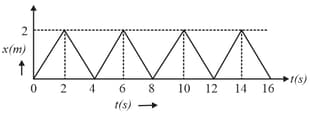

The figure shows the position - time $(x-t)$ graph of one-dimensional motion of a body of mass $0.4 \mathrm{kg}$. The magnitude of each impulse is

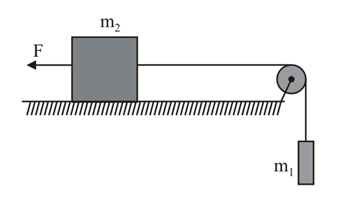

A constant force, $F=\frac{m_{1}g}{2}$ is applied on the block of mass $m_2$ as shown in figure. The string and the pulley are light and the surface of the table is smooth. Find the acceleration of $m_2$.

A particle of mass $m$ initially at rest, is acted upon by a variable force $F$ for a brief interval of time $T.$ It attains a velocity $u$ after the force stops acting. $F$ is shown in the graph as a function of time. The curve is a semicircle, find $u.$
