MEDIUM
NEET
IMPORTANT
Earn 100

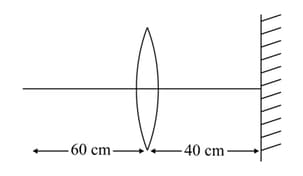

A point object is placed at a distance of 60 cm from a convex lens of focal length 30 cm. If a plane mirror were put perpendicular to the principal axis of the lens and at a distance of 40 cm from it, the final image would be formed at a distance of :

Question Image

33.33% studentsanswered this correctly

Questions featured in Previous Year Papers on Optics

MEDIUM
NEET
IMPORTANT

Find the value of the angle of emergence from the prism. Refractive index of the glass is 3.

Question Image

MEDIUM
NEET
IMPORTANT
A light ray from air is incident at one end of a glass fibre of refractive index 1.5 making an incidence angle of 60° on the lateral surface, so that it undergoes a total internal reflection. How much time would it take to traverse the straight fibre of length 2 km?
HARD
NEET
IMPORTANT

A small coin is fixed at the center of the base of an empty cylindrical steel container having radius R=1 m and height d=4 m. At time t=0 s, the container starts getting filled with water at a flowrate of Q=0.1 m3/s without disturbing the coin. Find the approximate time when the coin will first be seen by the observer "O" from the height of H=5.75 m above and L=1.5 m radially away from the coin as shown in the figure. Refractive index of water is n=1.33.

Question Image

MEDIUM
NEET
IMPORTANT
A plane wavefront of wavelength λ is incident on a single slit of width a. The angular width of the principal maximum is
HARD
NEET
IMPORTANT
A thin convex lens is placed just above an empty vessel of depth 80 cm. The image of a coin kept at the bottom of the vessel is thus formed 20 cm above the lens. If now water is poured in the vessel upto a height of 64 cm what will be the approximate new position of the image? Assume that refractive index of water is 4/3.
HARD
NEET
IMPORTANT
An object, is placed 60 cm in front of a convex mirror of focal length 30 cm. A plane mirror is now placed facing the object in between the object and the convex mirror such that it covers lower half of the convex mirror. What should be the distance of the plane mirror from the object, so that there will be no parallax between the images formed by the two mirrors?
HARD
NEET
IMPORTANT

A point object is placed on the axis of a thin convex lens of focal length 0.05 m at a distance of 0.2 m from the lens and its image is formed on the axis. If the object is now made to oscillate along the axis with a small amplitude of A cm, then what is the amplitude of oscillation of the image?

[you may assume, 11+x1-x, where x1


MEDIUM
NEET
IMPORTANT
The power of a biconvex lens is 10 dioptre and the radius of curvature of each surface is 10 cm. Then the refractive index of the material of the lens is,
