A uniform wire of resistance $2.20 \mathrm{\Omega }$ has a length of $2 \mathrm{m}$. Find the length of the similar wire which connected in parallel with the $2 \mathrm{m}$ long wire, will give a resistance of $2.0 \mathrm{\Omega }$.

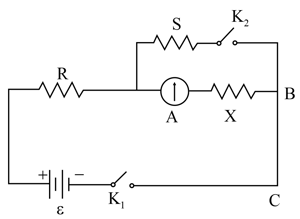

The reading of the (ideal) ammeter, in the circuit shown here, equals:

(i) $I$ when the key $K_7$ is closed but the key $K_2$ is open.

(ii) $\frac{1}{2}$ when both keys $K_1$ and $K_2$ are closed.

Find the expression for the resistance of $X$ in terms of the resistances of $R$ and $S$.

Five resistors are connected as shown in Fig. Find the equivalent resistance between points $B$ and $C$.

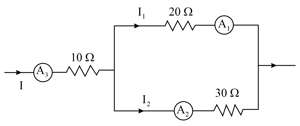

If the reading of the ammeter $A_1$ in Fig. is $2.4 \mathrm{A}$, what will the ammeters $A_2$ and $A_3$ read? Neglect the resistances of the ammeters.
