HARD
12th West Bengal Board
IMPORTANT
Earn 100

Calculate the current drawn from the battery in the given network, shown in Figure

Question Image



Important Questions on Current Electricity

HARD
12th West Bengal Board
IMPORTANT
In a metre bridge, the null point is found at a distance of l1cm from A. If new resistance of X is connected in parallel with S, the null point occurs at l2 cm. Obtain a formula for X in terms of l1,l2 and S.
HARD
12th West Bengal Board
IMPORTANT

10 m Long wire of uniform cross-section of 20 Ω Resistance is fitted in a potentiometer. This wire is connected in series with a battery of 5 volts Along with an external resistance of 480 Ω. If an unknown emf   Is balanced at 6.0 m Length of this wire, calculate

(i) the potential gradient of the potentiometer wire,

MEDIUM
12th West Bengal Board
IMPORTANT

10 m Long wire of uniform cross-section of 20 Ω Resistance is fitted in a potentiometer. This wire is connected in series with a battery of 5 volts Along with an external resistance of 480 Ω. If an unknown emf  Is balanced at 6.0 m Length of this wire, calculate

(ii) the value of the unknown emf .

HARD
12th West Bengal Board
IMPORTANT

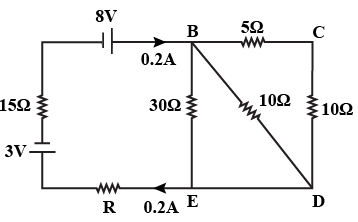

Calculate the value of the resistance R In the circuit shown in figure, So that the current is 0.2 A.What would be the potential difference between A and D?

Question Image

HARD
12th West Bengal Board
IMPORTANT

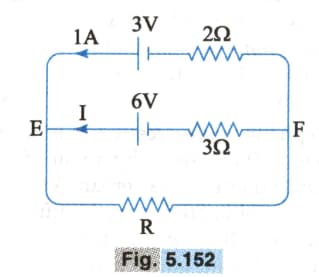

Using Kirchhoff's rules in the given circuit Fig.5.152 determine

(i) the voltage drop across the unknown resistance R

Question Image



HARD
12th West Bengal Board
IMPORTANT

Using Kirchhoff's rules in the given circuit Fig.5.152 determine

(ii) the current I In the arm EF.

Question Image



HARD
12th West Bengal Board
IMPORTANT

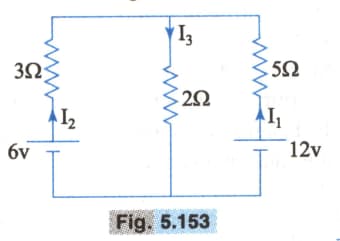

Using Kirchhoff's law calculate the currents I1,I2 and I3 In the network shown in Fig. 5.153.

 Question Image



HARD
12th West Bengal Board
IMPORTANT

Find the value of the unknown resistance X in the circuit, Figure, if no current flows through the section AO. Also calculate the current drawn by the circuit from the battery of emf 6Vand negligible internal resistance.

Question Image
