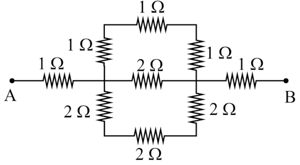

Calculate the effective resistance between the points A and B in the circuit shown in the figure.
Question Image

Important Questions on Current Electricity

EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 14
A wire of uniform thickness with a resistance of 27 Ω is cut into three equal pieces and they are joined in parallel. Find the equivalent resistance of the parallel combination.
EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 15
A circuit consists of a 1 ohm resistor in series with a parallel arrangement of 6 ohm and 3 ohm resistors. Calculate the total resistance of the circuit. Draw a diagram.
EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 16

Calculate the effective resistance between the points A and B in the network shown below in Figure.

Question Image

EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 17

Calculate the equivalent resistance between A and B in the figure.
Question Image

EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 18
In the network shown by the figure, calculate the equivalent resistance between the points A and B.
Question Image
MEDIUM
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 18
In the network shown by the figure, calculate the equivalent resistance between the points A and C.
Question Image
EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 19
Five resistors, each 3 Ω, are connected as shown in the figure. Calculate the resistance between the points P and Q.
Question Image
EASY
10th ICSE
IMPORTANT
Selina Icse Concise Physics For Class 10>Chapter 8 - Current Electricity>EXERCISE-8(B)>Q 19

Five resistors, each 3 Ω, are connected as shown in Figure. Calculate the resistance between the points X and Y.
Question Image
