Consider the following statements regarding the network shown in the figure, 5.184.

(1) The equivalent resistance of the network between points A and B is independent of value of G.

(2) The equivalent resistance of the network between point A and B in Fig.5.184. is 43R.

(3) The current through G is zero which of the above statement is true

Question Image



50% studentsanswered this correctly

Important Questions on Current Electricity

HARD
12th West Bengal Board
IMPORTANT
Two cells with the same emf E and different internal resistance r1 and r2 are connected in series to an external resistance R. The value of R, so that the potential difference across the first cell be zero, is
MEDIUM
12th West Bengal Board
IMPORTANT

In the circuit given have Fig.5.185, the points A,B and C are 70V,zero,10V respectively. Then

Question Image



HARD
12th West Bengal Board
IMPORTANT

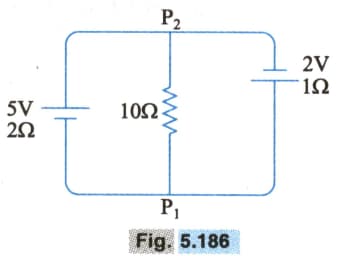

5V battery with internal resistance 2Ω and a 2V battery with internal resistance 1Ω are connected to a 10Ω resistor as shown in Fig.5.186. The current in the 10Ω resistor is

Question Image



EASY
12th West Bengal Board
IMPORTANT

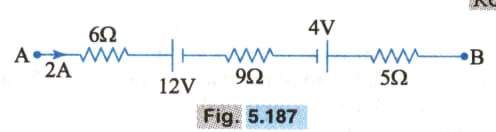

Potential difference between A and B in the following figure, Fig.5.187 is

Question Image



EASY
12th West Bengal Board
IMPORTANT
Kirchhoff's second law for the analysis of circuit is based on
MEDIUM
12th West Bengal Board
IMPORTANT
A battery consists a variable number (n) of identical cells, each having an internal resistance r connected in series. The terminals of the battery are short-circuited. A graph of current versus the number of cells will be as shown in the figure,
MEDIUM
12th West Bengal Board
IMPORTANT
A battery has an emf of 15V and internal resistance of 1Ω Is the terminal to terminal potential difference less than, equal to or greater than 15V if the current in the battery is (1) from negative to positive terminal, (2) from positive to negative terminal, (3) zero current ?
HARD
12th West Bengal Board
IMPORTANT
Two identical cells whether connected in parallel or in series gives the same current when connected to an external resistance 1.5Ω. Find the value of internal resistance of each cell.
