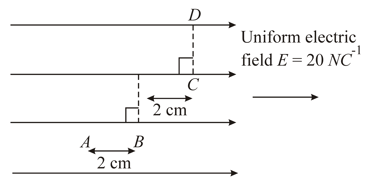

Find out the following :

a) $V_{\mathrm{A}} - V_{\mathrm{B}}$

b) $V_{\mathrm{B}}-V_{\mathrm{C}}$

c) $V_{\mathrm{C}}-V_{\mathrm{A}}$

d) $V_{\mathrm{D}}-V_{\mathrm{C}}$

e) $V_{\mathrm{A}}-V_{\mathrm{D}}$

f) Arrange the order of potential for points $A, B, C \text{and} D$.

The figure shows field lines and equipotential (dashed) lines.

(a) Find the external work done to move a $-2 \mathrm{\mu C}$  charge at constant speed from $A$ to $B$ along the path shown.

(b) Find the work done by the electric field.

In moving from $A$ to $B$ along an electric field, the electric field does $4.8\times {10}^{-19} \mathrm{J}$ of work on an electron in the field illustrated in the figure. What are the differences in the electric potential? Find the potential difference a) $V_{\mathrm{B}}-V_{\mathrm{A}}$ b)  $V_{\mathrm{C}}-V_{\mathrm{A}}$ c) ${\mathrm{V}}_{\mathrm{C}}-{\mathrm{V}}_{\mathrm{B}}$

A charge $q_0$ is transported from point $A$ to $B$ along the arc $AB$ with centre at $C$ as shown in the figure near a long charged wire with linear density $\mathrm{\lambda }$ lying in the same plane. Find the work done by the external agent in doing so.

The graphical variation of electric potential due to point charge $q_1$ and $q_2$ lies on the $x$-axis at some separation $d$, which is shown in the figure. If the origin is the point between the charges where potential is zero. Distance of $q_2$ from origin is $\frac{d}{4}$. Find the distance of point $P$ (marked in the figure) from charge $q_2$.
