Why is fuse wire always placed in a live circuit?

The fuse wire is always connected in the live wire of the circuit because if the fuse is put in the neutral wire, then due to excessive flow of current when the fuse burns, current stops flowing in the circuit, but the appliance remains connected to the high potential point of the supply through the live wire.

E M B I B E

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 13>Q 1

EASY

10th CBSE

IMPORTANT

Earn 100

Four resistors of resistance $0 .5 Ω, 1 .5 Ω, 4 Ω$ and $6 Ω$ are connected in series to a battery of $6 V$ . Draw the circuit diagram and calculate the current drawn from the battery.

Important Questions on Electricity

MEDIUM

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 13>Q 1

Four resistors of resistance

0 .5 Ω, 1 .5 Ω, 4 Ω

and

6 Ω

are connected in series to a battery of

6 V

. Draw the circuit diagram and calculate the potential difference at the ends of each resistor.

MEDIUM

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 13>Q 2

Question Image

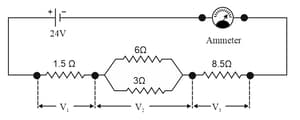

Figure shows a circuit diagram with a battery of $24 V$ . Calculate the reading of the ammeter.

HARD

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 13>Q 2

Question Image

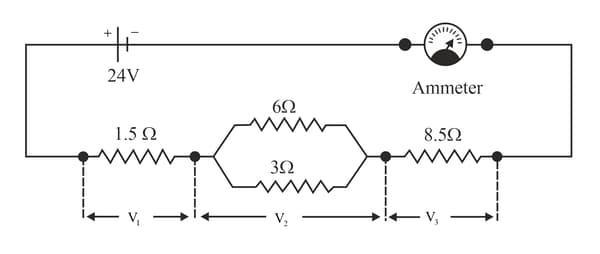

Figure shows a circuit diagram with a battery of $24 V$ . Calculate the potential difference $V_{1}, V_{2}$ and $V_{3}$ .

EASY

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 14>Q 1

Three resistors of

6 Ω, 2 Ω

and

X Ω

resistance are connected in series to a cell such that the potential difference at the ends of the resistors is

1.5 V

and the current flowing through circuit is

1 / 6 A

. Draw the circuit diagram and calculate the value of

X

.

MEDIUM

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 14>Q 2

Question Image

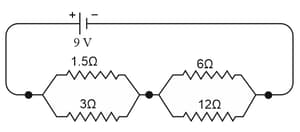

Figure shows a battery of $6 V$ connected to a number of resistors, such that the ammeter records a current of $0.4 A$ . Calculate the value of $X$ .

EASY

10th CBSE

IMPORTANT

Core Science Physics>Chapter 3 - Electricity>Practice Problems : 15>Q 1

Three resistors of $4 Ω, 6 Ω$ and $12 Ω$ are connected in parallel. The combination of the above resistors is connected in series to a resistance of $2 Ω$ and then to a battery of $6 V$ . Draw the circuit diagram and calculate the current in the main circuit.
