EASY
JEE Main/Advance
IMPORTANT
Earn 100

If a charge is shifted from a high potential region to a low potential region, the electrical potential energy

50% studentsanswered this correctly

Important Questions on Electrostatics

EASY
JEE Main/Advance
IMPORTANT
A particle of mass 2 g and charge 1 μC is held at rest on a frictionless horizontal surface at a distance of 1 m from a fixed charge of 1 mC. If the particle is released it will be repelled. The speed of the particle when it is a distance of 10 m from the fixed charge is
MEDIUM
JEE Main/Advance
IMPORTANT

Six charges of magnitude +q and q are fixed at the corners of a regular hexagon of edge length a as shown in the figure. The electrostatic potential energy of the system of charged particles is

Question Image

EASY
JEE Main/Advance
IMPORTANT
You are given an arrangement of three-point charges q2q and xq separated by equal finite distances so that the electric potential energy of the system is zero. Then the value of x is
MEDIUM
JEE Main/Advance
IMPORTANT
If n identical water drops (assumed spherical each) each charged to potential energy U coalesce to form a single drop, the potential energy of the single drop is (Assume that drops are uniformly charged)
MEDIUM
JEE Main/Advance
IMPORTANT

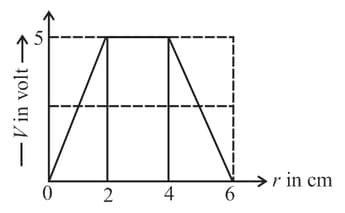

The variation of potential with distance r from a fixed point is shown in the figure. The electric field at r=5 cm, is

Question Image

MEDIUM
JEE Main/Advance
IMPORTANT

The variation of potential with distance r from a fixed point is shown in the figure.

Question Image

The electric force acting on a point charge of 2 C placed at the origin will be

EASY
JEE Main/Advance
IMPORTANT

The electric potential V as a function of distance x (in metre) is given by V=5x2+10x9 volt. The value of the electric field at x=1 m would be

EASY
JEE Main/Advance
IMPORTANT
A uniform electric field having a magnitude E0, directed along positive x-axis exists. If the electric potential V is zero at x=0, then its value at x=+x will be
