Choose the correct statement about Zener diode:

It works as a voltage regulator in reverse bias and behaves like simple p-n junction diode in forward bias

It works as a voltage regulator in both forward and reverse bias

It works a voltage regulator only in forward bias

It works as a voltage regulator in forward bias and behaves like simple p-n junction diode in reverse bias

Match the List I with List II List I List II A Intrinsic Semiconductor I Fermi-level near valence band B n-type semiconductor II Fermi-level at middle of valence and conduction band C p-type semiconductor III Fermi-level near conduction band D Metals IV Fermi-level inside conduction band Choose the correct answer from the options given below:

(A) → II, (B) → III, (C) → I, (D) → IV

(A) → I, (B) → II, (C) → III, (D) → IV

(A) → II, (B) → I, (C) → III, (D) → IV

(A) → III, (B) → I, (C) → II, (D) → IV

Given below are two statements: Statement I : In a typical transistor, all three regions emitter, base and collector have same doping level. Statement II : in a transistor, collector is the thickest and base is the thinnest segment. In the light of the above statements, choose the most appropriate answer from the options given below.

Statement I is incorrect but Statement II is correct

Both Statement I and Statement II are correct

Both Statement I and Statement II are incorrect

Statement I is correct but Statement II is incorrect

Given below are two statements Statement I : For transmitting a signal, size of antenna ( l ) should be comparable to wavelength of signal (at least l = λ 4 in dimension). Statement II : In amplitude modulation, amplitude of carrier wave remains constant (unchanged). In the light of the above statements, choose the most appropriate answer from the options given below

Statement I is correct but Statement II is incorrect

Both Statement I and Statement II are correct

Both Statement I and Statement II are incorrect

Statement I is incorrect but Statement II is correct

MEDIUM

JEE Main

IMPORTANT

Earn 100

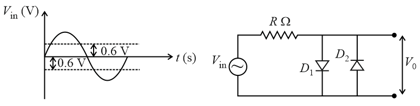

In the given circuit the input voltage $V_{in}$ is shown in figure. The cut-in voltage of $p - n$ junction diode ( $D_{1}$ or $D_{2}$ ) is $0.6 V$ . Which of the following output voltage $(V_{0})$ waveform across the diode is correct?

50% studentsanswered this correctly

Important Questions on Electronic Devices Semiconductors

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 28 June 2022 Shift 2>Q 170

Amplitude modulated wave is represented by

V_{AM} = 10 [1 + 0.4 \cos (2 π \times 10^{4} t)] \cos (2 π \times 10^{7} t)

. The total bandwidth of the amplitude modulated wave is

HARD

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 28 June 2022 Shift 2>Q 171

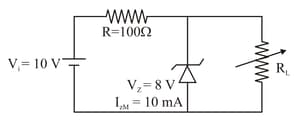

A Zener of breakdown voltage $V_{Z} = 8 V$ and maximum Zener current, $I_{ZM} = 10 mA$ is subjected to an input voltage $V_{i} = 10 V$ with series resistance $R = 100 Ω$ . In the given circuit $R_{L}$ represents the variable load resistance. The ratio of maximum and minimum value of $R_{L}$ is _____ .

Question Image

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 29 June 2022 Shift 1>Q 172

Only

2 %

of the optical source frequency is the available channel bandwidth for an optical communicating system operating at

1000 nm

. If an audio signal requires a bandwidth of

8 kHz

, how many channels can be accommodated for transmission

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 29 June 2022 Shift 1>Q 173

A transistor is used in an amplifier circuit in common emitter mode. If the base current changes by

100 μ A

, it brings a change of

10 mA

in collector current. If the load resistance is

2 kΩ

and input resistance is

1 kΩ

, the value of power gain is

x \times 10^{4}

. The value of

x

is _____ .

HARD

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 29 June 2022 Shift 2>Q 175

A potential barrier of

0.4 V

exists across a p-n junction. An electron enters the junction from the

n

-side with a speed of

6.0 \times 10^{5} {m s}^{- 1}

. The speed with which electron enters the

p

side will be

\frac{x}{3} \times 10^{5} {m s}^{- 1}

, then the value of

x

is _____.: (Given mass of electron

= 9 \times 10^{- 31} kg

, charge on electron

= 1.6 \times 10^{- 19} C

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 25 July 2022 Shift 1>Q 176

In the circuit, the logical value of $A = 1$ or $B = 1$ when potential at $A$ or $B$ is $5 V$ and the logical value of $A = 0$ or $B = 0$ when potential at $A$ or $B$ is $0 V$ .

Question Image

The truth table of the given circuit will be :

EASY

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 22 - Electronic Devices Semiconductors>JEE Main - 25 July 2022 Shift 1>Q 177

The energy band gap of semiconducting material to produce violet (wavelength

= 4000 Å

) LED is _____

eV

. (Round off to the nearest integer).

In the given circuit the input voltage Vin is shown in figure. The cut-in voltage of p-n junction diode (D1 or D2) is 0.6 V. Which of the following output voltage V0 waveform across the diode is correct?
