In the given figure $R = 3 Ω$ . Determine equivalent resistance between points $A$ and $B$ .

50% studentsanswered this correctly

Important Questions on Electric Current and Circuits

MEDIUM

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 84

In the circuit as shown in figure, the ratio of current

\frac{i_{1}}{i_{2}}

is

Question Image

MEDIUM

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 85

For the circuit shown in the figure, determine the charge of the capacitor in steady state.
Question Image

Question Image

EASY

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 86

In the circuit shown in figure

C_{1} = 2 C_{2}

. Switch S is closed at time

t = 0

. Let

i_{1}

and

i_{2}

be the currents flowing through

C_{1}

and

C_{2}

at any time

t

, then the ratio

\frac{i_{1}}{i_{2}}

Question Image

HARD

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 87

When the switch

1

is closed, the current through the

8 Ω

resistance is

0.75 A

. When the switch

2

is closed (only), the current through the resistance marked

x

is

1 A

.

Question Image

The value of

ε

is

MEDIUM

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 88

What is the equivalent capacitance between

A

and

B

in the circuit at steady state shown.
Question Image

Question Image

EASY

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 89

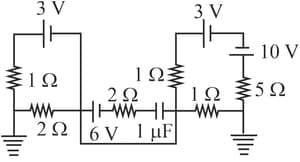

The potential of the point $O$ is
Question Image

EASY

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 1

Consider a conductor of the variable cross-section in which current is flowing from cross-section $1$ to $2$ .

Then,

Question Image

EASY

JEE Advanced

IMPORTANT

PHYSICS for Joint Entrance Examination JEE (Advanced) Electrostatics and Current Electricity>Chapter 5 - Electric Current and Circuits>Exercise>Q 2

The charge flowing in the conductor varies with time as

Q = a t - b t^{2}

. Then the current
