Match the graphs between the following variables with their names: Graphs Names (i) Pressure vs temperature graph at constant molar volume. (a) Isotherms (ii) Pressure vs volume graph at constant temperature. (b) Constant temperature curve (iii) Volume vs temperature graph at constant pressure. (c) Isochores (d) Isobars

Pressure vs temperature graph at constant volume is called isochores. The graph is represented as follows. Pressure vs volume graph at constant temperature are called isotherms. The graph is represented as follows. Volume vs temperature graph at constant pressure are called isobars. The graph is represented as follows. (i) Pressure vs temperature graph at constant molar volume. (c) Isochores (ii) Pressure vs volume graph at constant temperature. (a) Isotherms (iii) Volume vs temperature graph at constant pressure. (d) Isobars

Match the following gas laws with the equation representing them (i) Boyle’s law (a) V ∝ n at constant T and p (ii) Charle’s law (b) p Total = p 1 + p 2 + p 3 + . . . . . . at constant T , V . (iii) Dalton’s law (c) pV T = Constant (iv) Avogadro law (d) V ∝ T at constant n and p (e) p ∝ 1 V at constant n and T

According to Boyle's law, at a constant temperature, the volume of a given mass of a gas is inversely proportional to its pressure. p ∝ 1 V at constant temperature Charle's law states that the volume of an ideal gas is directly proportional to the absolute temperature at constant pressure. V ∝ T Dalton’s law: At constant V and T , total pressure of the gaseous mixture of two or more non reacting gases is equal to the algebraic sum of their partial pressures. p Total = p 1 + p 2 + p 3 + . . . . . . at constant temperature and volume Avogadro law: It states that equal volumes of all gases, under the same conditions of temperature and pressure, contain equal number of molecules. V ∝ n at constant temperature and pressure. (i) Boyle’s law (e) p ∝ 1 V at constant n and T (ii) Charle’s law (d) V ∝ T at constant n and p (iii) Dalton’s law (b) p Total = p 1 + p 2 + p 3 + . . . . . . at constant T , V (iv) Avogadro law (a) V ∝ n at constant T and p

Match the following graphs of ideal gas with their co-ordinates : Graphical representation x and y co-ordinates (a) pV vs . V (b) p vs . V (c) p vs . 1 V

According to Boyle's law, at a constant temperature, the volume of a given mass of a gas is inversely proportional to its pressure. Since the temperature is constant, the graph is called isotherm. According to Boyle's law, at a constant temperature, pressure of the gas is directly proportional to 1 / V . So straight line is formed from the origin. According to Boyle's law, at a constant temperature, product of pressure and volume is always constant. PV = constant. (b) p vs . V (c) p vs . 1 V (a) pV vs . V

HARD

11th CBSE

IMPORTANT

Earn 100

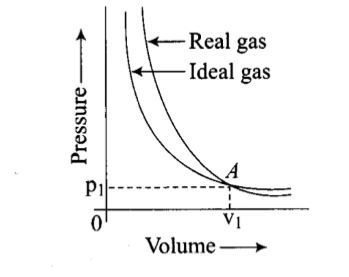

Pressure versus volume graph for a real gas and an ideal gas are shown in the figure. Answer the following question on the basis of this graph. Interpret the behaviour of real gas with respect to ideal gas at high pressure.

Important Questions on States of Matter

MEDIUM

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Short Answer Type>Q 40

Pressure versus volume graph for a real gas and an ideal gas are shown in the figure. Answer the following question on the basis of this graph. Mark the pressure and volume by drawing a line at the point where real gas behaves as an ideal gas.

Question Image

EASY

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Matching Type>Q 41

Match the graphs between the following variables with their names:

Graphs	Names
(i) Pressure vs temperature graph at constant molar volume.	(a) Isotherms
(ii) Pressure vs volume graph at constant temperature.	(b) Constant temperature curve
(iii) Volume vs temperature graph at constant pressure.	(c) Isochores
	(d) Isobars

EASY

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Matching Type>Q 42

Match the following gas laws with the equation representing them

(i) Boyle’s law	(a) $V \propto n$ at constant $T$ and $p$
(ii) Charle’s law	(b) $p_{Total} = p_{1} + p_{2} + p_{3} + . . . . . .$ at constant $T, V$ .
(iii) Dalton’s law	(c) $\frac{pV}{T} =$ Constant
(iv) Avogadro law	(d) $V \propto T$ at constant $n$ and $p$
	(e) $p \propto \frac{1}{V}$ at constant $n$ and $T$

EASY

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Matching Type>Q 43

Match the following graphs of ideal gas with their co-ordinates :

Graphical representation	x and y co-ordinates
	(a) $pV vs . V$
	(b) $p vs . V$
	(c) $p vs . \frac{1}{V}$

MEDIUM

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Long Answer Type>Q 50

Isotherms of carbon dioxide at various temperatures are represented in the figure. Answer the following question based on this figure. In which state will ${CO}_{2}$ exist between the points a and b at temperature $T_{1}$ ?

Question Image

HARD

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Long Answer Type>Q 50

Isotherms of carbon dioxide at various temperatures are represented in the figure. Answer the following question based on this figure. At what point will ${CO}_{2}$ start liquefying when temperature is $T_{1}$ ?

Question Image

EASY

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Long Answer Type>Q 50

Isotherms of carbon dioxide at various temperatures are represented in the figure. Answer the following question based on this figure. At what point will ${CO}_{2}$ be completely liquefied when temperature is $T_{2}$ .

Question Image

MEDIUM

11th CBSE

IMPORTANT

NCERT Exemplar Chemistry - Class 11>Chapter 5 - States of Matter>Long Answer Type>Q 50

Isotherms of carbon dioxide at various temperatures are represented in the figure. Answer the following question based on this figure. Will condensation take place when the temperature is $T_{3}$ .

Question Image

Pressure versus volume graph for a real gas and an ideal gas are shown in the figure. Answer the following question on the basis of this graph. Interpret the behaviour of real gas with respect to ideal gas at high pressure.
