HARD
10th ICSE
IMPORTANT
Earn 100

The cross-section of a tunnel is a square of side 7 m surmounted by a semicircle as shown in the adjoining figure. The tunnel is 80 m long.

Calculate; the surface area of the tunnel (excluding the floor).


Question Image


Important Questions on Cylinder, Cone and Sphere (Surface Area and Volume)

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 9

The cross-section of a tunnel is a square of side 7 m surmounted by a semicircle as shown in the adjoining figure. The tunnel is 80 m long.

Calculate; its floor area.


Question Image

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 10
A cylindrical water tank of diameter 2.8 m and height 4.2 m is being fed by a pipe of diameter 7 cm through which water flows at the rate of 4 m s-1 Calculate in minutes, the time it takes to fill the tank.

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 11
Water flows, at 9 km per hour, through a cylindrical pipe of cross-sectional area 25 cm2. If this water is collected into a rectangular cistern of dimensions 7.5 m by 5 m by 4 m; calculate the rise in level in the cistern in 1 hour 15 minutes.

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 12

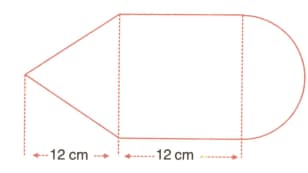

The given figure shows the cross-section of a cone, a cylinder and a hemisphere all with the same diameter 10 cm, and the other dimensions are as shown.
Calculate the total surface area,
Question Image

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 12

The given figure shows the crosi-section of a cone, a cylinder and a hemisphere all with the same diameter 10 cm, and the other dimensions are as shown.
Calculate the total volume of the solid and
Question Image



HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 12

The given figure shows the cross-section of a cone, a cylinder and a hemisphere all with the same diameter 10 cm, and the other dimensions are as shown.
Calculate:
Question Image

The density of the material if its total weight is 1.7 kg.

HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 13
A solid, consisting of a right circular cone standing on a hemisphere, is placed upright in a right circular cylinder, full of water, and
touches the bottom. Find the volume of water left in the cylinder, having given that the radius of the cylinder is 3 cm and its height is 6 cm; the radius of the hemisphere is 2 cm and the height of cone is 4 cm. Give your answer to the nearest cubic centimetre.
HARD
10th ICSE
IMPORTANT
Concise Mathematics>Chapter 20 - Cylinder, Cone and Sphere (Surface Area and Volume)>EXERCISE>Q 14
A metal container in the form of a cylinder is surmounted by a hemisphere of the same radius. The internal height of the cylinder is 7 m and the internal radius is 3-5 m. Calculate the total area of the internal surface, excluding the base.
