HARD

JEE Main

IMPORTANT

Earn 100

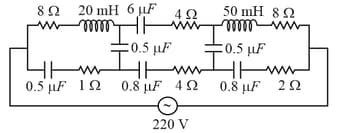

The effective current $I$ in the given circuit at very high frequencies will be _____ $A$ .

50% studentsanswered this correctly

Important Questions on Electromagnetic Induction and Alternating Currents

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 26 July 2022 Shift 2>Q 145

In a coil of resistance

8 Ω

, the magnetic flux due to an external magnetic field varies with time as

ϕ = \frac{2}{3} (9 - t^{2})

. The value of total heat produced in the coil, till the flux becomes zero, will be _____

J

HARD

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 27 July 2022 Shift 1>Q 146

To light, a

50 W, 100 V

lamp is connected, in series with a capacitor of capacitance

\frac{50}{π \sqrt{x}} μ F

, with

200 V, 50 Hz AC

source. The value of

x

will be _____ .

HARD

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 27 July 2022 Shift 2>Q 147

A series LCR circuit has

L = 0.01 H, R = 10 Ω

and

C = 1 μ F

and it is connected to AC voltage of amplitude

(V_{m}) 50 V

. At frequency

60 %

lower than resonant frequency, the amplitude of current will be approximately

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 27 July 2022 Shift 2>Q 148

A conducting circular loop is placed in

X - Y

plane in presence of magnetic field

\vec{B} = (3 t^{3} \hat{j} + 3 t^{2} \hat{k})

in SI unit. If the radius of the loop is

1 m

, the induced emf in the loop, at time,

t = 2 s

n π V

. The value of

n

is _____ .

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 28 July 2022 Shift 1>Q 149

The equation of current in a purely inductive circuit is

5 \sin (49 π t - 30 °)

. If the inductance is

30 mH

then the equation for the voltage across the inductor, will be

EASY

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 28 July 2022 Shift 1>Q 150

The frequencies at which the current amplitude in an LCR series circuit becomes

\frac{1}{\sqrt{2}}

times its maximum value, are

212 rad s^{- 1}

and

232 rad s^{- 1}

. The value of resistance in the circuit is

R = 5 Ω

. The self inductance in the circuit is _____

mH

MEDIUM

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 28 July 2022 Shift 2>Q 151

A transformer operating at primary voltage

8 kV

and secondary voltage

160 V

serves a load of

80 kW

. Assuming the transformer to be ideal with purely resistive load and working on unity power factor, the loads in the primary and secondary circuit would be

EASY

JEE Main

IMPORTANT

EMBIBE CHAPTER WISE PREVIOUS YEAR PAPERS FOR PHYSICS>Chapter 16 - Electromagnetic Induction and Alternating Currents>JEE Main - 28 July 2022 Shift 2>Q 152

For the given circuit the current through battery of $6 V$ just after closing the switch ' $S$ ' will be _____ $A$ .

Question Image

The effective current I in the given circuit at very high frequencies will be _____ A.
