A parallel plate capacitor with square plates is filled with four dielectrics of dielectric constants K 1 , K 2 , K 3 , K 4 arranged as shown in the figure. The effective dielectric constant K will be:

K = K 1 K 2 K 1 + K 2 + K 3 K 4 K 3 + K 4

K = K 1 + K 2 K 3 + K 4 2 K 1 + K 2 + K 3 + K 4

K = ( K 1 + K 4 ) ( K 2 + K 3 ) 2 K 1 + K 2 + K 3 + K 4

K = K 1 + K 2 ( K 3 + K 4 ) K 1 + K 2 + K 3 + K 4

MEDIUM

12th Gujarat Board

IMPORTANT

Earn 100

The equivalent capacitance of the combination shown in the figure is _________.

64.1% studentsanswered this correctly

Important Questions on Electrostatic Potential and Capacitance

MEDIUM

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 36

A capacitor of capacitance

C_{1}

is charged to a potential

V

and then connected in parallel to an uncharged capacitor of capacitance

C_{2}

. The final potential difference across each capacitor will be

MEDIUM

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 37

The charge on $3 μ F$ capacitor shown in the figure is

Question Image

EASY

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 38

The equivalent capacitance for the network shown in the figure is

Question Image

EASY

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 39

There are three capacitors each of capacitance

4 μ F

are to be connected in such a way that the effective capacitance is

6 μ F

. This can be done by

MEDIUM

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 40

Three capacitors of capacitances

1 μF, 2 μF

and

3 μF

are connected in series and a potential difference of

11 V

is applied across the combination. Then, the potential difference across the plates of

1 μF

capacitor is

EASY

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 41

Three capacitors each of capacitance

9 pF

are connected in series. What is the potential difference across each capacitor if the combination is connected to a

120 V

supply?

EASY

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 42

Three capacitors of capacitances

2 pF, 3 pF and 4 pF

are connected in parallel. What is the total capacitance of the combination?

MEDIUM

12th Gujarat Board

IMPORTANT

Physics Crash Course (Based on Revised Syllabus - 2023)>Chapter 2 - Electrostatic Potential and Capacitance>Exercise>Q 43

Three capacitors of capacitances

2 pF, 3 pF and 4 pF

are connected in parallel. Determine the charge on each capacitor if the combination is connected to a

100 V

supply.

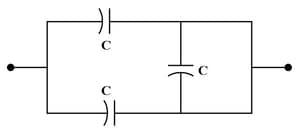

The equivalent capacitance of the combination shown in the figure is _________.
