A linear harmonic oscillator of force constant 2 × 10 6 N m - 1 and amplitude 0 . 01 m has a total mechanical energy of 160 J . Its

maximum potential energy is 160 J .

maximum potential energy is 100 J .

maximum potential energy is zero.

HARD

JEE Main/Advance

IMPORTANT

Earn 100

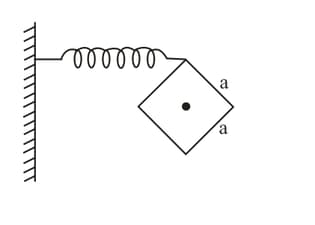

The figure shows a cube of mass $m$ and edge length a mounted on an axle through its centre. A spring of force constant $k$ connects the cubes upper corner to a rigid wall. Initially the spring is in natural length. If the cube is given a small angular displacement and released, its angular frequency is

30% studentsanswered this correctly

Important Questions on Oscillations

HARD

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 4

Blocks $A$ and $B$ of masses $m$ and $2 m$ respectively connected by an ideal spring of force constant $k$ rest on a smooth horizontal surface (see figure). Block $B$ is shifted distance $l$ towards left and then released. The velocity of centre of mass of the system of $A$ and $B$ after block $A$ loses contact with the wall is

Question Image

MEDIUM

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 5

A smooth massless horizontal rod

P Q

is free to rotate about a vertical axis through end

P .

The rod is filled with a small sized sleeve of mass

m

connected to the end

P

by an ideal spring of length

L_{0}

and force constant

k .

The work performed to slowly increase the angular velocity to the value

\sqrt{\frac{k}{2 m}}

\frac{p k L_{0}^{2}}{4} .

The value of

p

HARD

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 7

Displacement-time equation of two particles moving along

x

-axis are

x_{1} = 4 + 4 sinω t

and

x_{2} = 3 cosω t

where

ω = π rad s^{- 1} .

Maximum separation will be at time

t

equal to

MEDIUM

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 11

The amplitude of a particle due to superposition of following SHMs. Along the same line is

X_{1} = 2 \sin (50 π t)

x_{2} = 10 \sin (50 π t + 37 °)

X_{3} = - 4 \sin (50 π t)

and

X_{4} = - 12 \cos (50 π t)

MEDIUM

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 13

Consider the shown diagram. All pulleys are massless and frictionless, springs are ideal and all connecting strings are ideal. Find the natural frequency of the system shown in figure

Question Image

MEDIUM

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 10

A linear harmonic oscillator of force constant

2 \times 10^{6} N m^{- 1}

and amplitude

0.01 m

has a total mechanical energy of

160 J

. Its

MEDIUM

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 11

Three simple harmonic motions in the same direction having the same amplitude and same period are superimposed. If each differ in phase from the next by

45 °

, then,

HARD

JEE Main/Advance

IMPORTANT

Gamma Question Bank for Engineering Physics>Chapter 13 - Oscillations>Assignment>Q 13

Blocks $P$ and $Q$ of masses $m$ and $3 m$ are connected by a spring of force constant $k .$ The system is placed on a smooth horizontal surface. At time $t = 0$ , block $P$ is projected horizontally with velocity $V_{0}$ towards right. Then

Question Image
