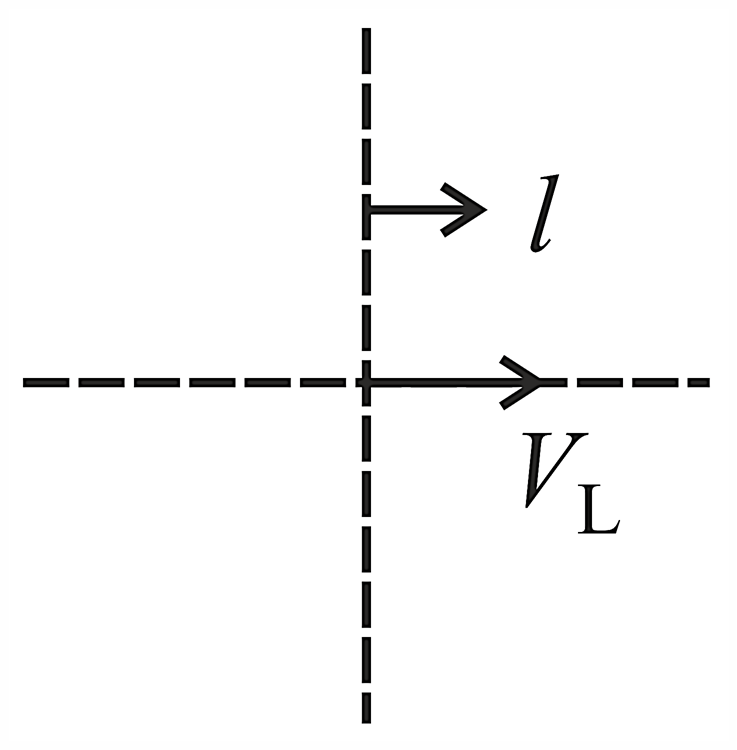

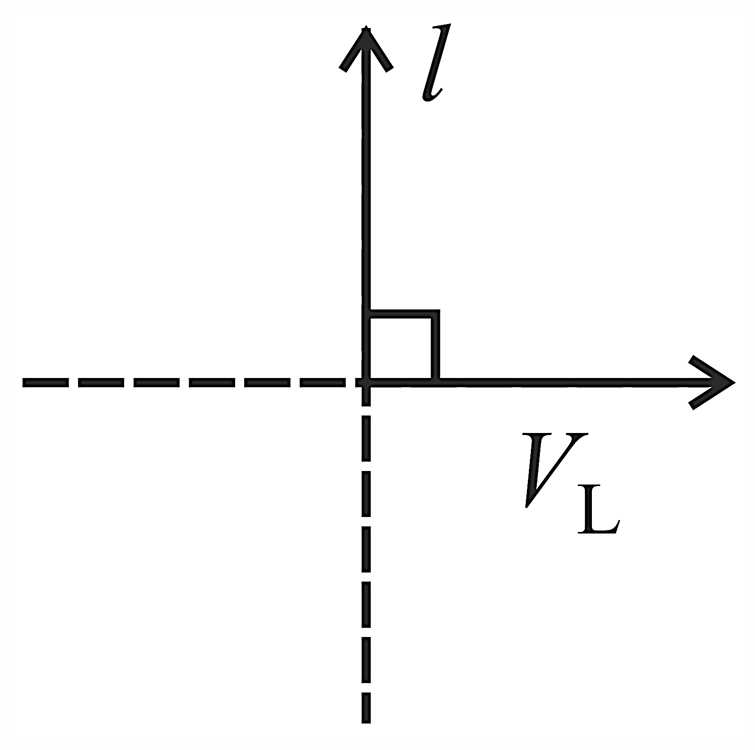

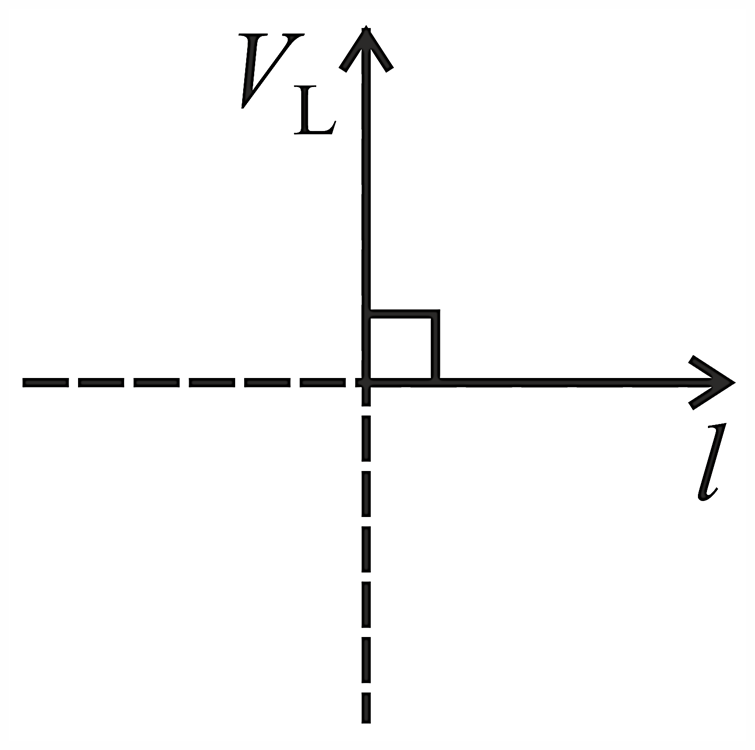

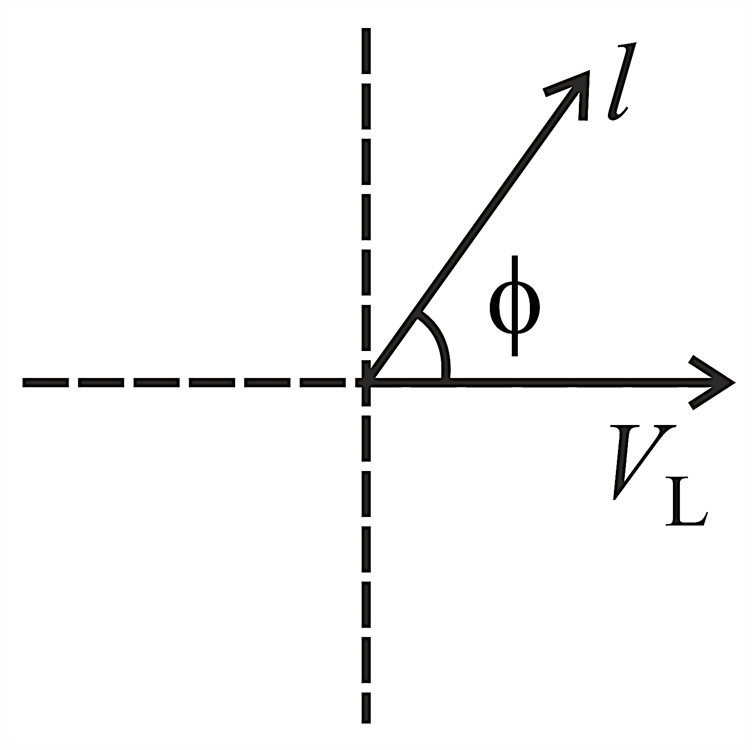

The phasor diagram for an a.c. circuit containing inductor only as shown below is (l is the current across inductor and VL is the potential difference across inductor)

Question Image

50% studentsanswered this correctly

Important Questions on Alternating Current

MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 6
The R.M.S. value of sinusoidal current and voltage related to the peak current I0 and peak voltage E0 respectively as
MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 7
The quality factor of a series LCR circuit is given as
MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 8
A capacitor of 2μF is connected to an alternating voltage source, E=1002sin(50t)V. The reading of the ammeter would be
EASY
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 9
The r.m.s. value of the voltage E=2002sin(310t-ϕ)∨ is
HARD
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 10
An inductor of reactance XL=4 Ω and resistor of resistance R=3 Ω are connected in series with a voltage source of emf ε=(20 V)[sin(100π rad s-1)t]. The current in the circuit at any time t will be
MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 11
The mean value of the current I=I0sinωt over two complete cycle is _____.
MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 12
At resonance, the impedence of series LCR circuit is _____.
MEDIUM
NEET
IMPORTANT
Gamma Question Bank for Medical Physics>Chapter 22 - Alternating Current>Assignment Set-1>Q 13
The ratio of ω0LR is called _____ factor of the circuit.
