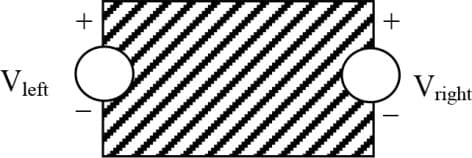

Two voltmeters, $V_{right}$ or $V_{left}$, each with an internal resistance of ${10}^6\mathrm{ }\mathrm{\Omega }$ are connected through wires of negligible resistance. The $\left(+\right)$ side of both voltmeters is below as shown. A changing magnetic field is present in the shaded area. At a particular moment in time, $V_{right}$ reads $-0.1 \mathrm{V}$.




What is induced emf in the circuit at that moment?

The figure below shows a circuit and its input voltage $V_i$ as a function of time $t$.

Assuming the diodes to be ideal, which of the following graphs depicts the output voltage $V_o$ as function of time $t ?$

A current of $0.1 \mathrm{A}$ flows through a $25 \mathrm{\Omega }$ resistor represented by the circuit diagram. The current in the $80 \mathrm{\Omega }$ resistor is:

The potential difference $\left(V_{\mathrm{A}}-V_{\mathrm{B}}\right)$ between the points $A$ and $B$ in the given figure is

Two batteries with e.m.f. $12 \mathrm{V}$ and $13 \mathrm{V}$ are connected in parallel across a load resistor of $10 \mathrm{\Omega }$. The internal resistance of the two batteries are $1 \mathrm{\Omega }$ and $2 \mathrm{\Omega }$ respectively. The voltage across the load lies between,

For a diode connected in parallel with a resistor, which is the most likely current $\left(I\right)$-voltage $\left(V\right)$ characteristic graph?
