EASY
Earn 100

What is a brittle material.

Important Questions on Elasticity

MEDIUM
The elastic limit of brass is 379 MPa. The minimum diameter of a brass rod if it is to support a 400 N load without exceeding its elastic limit will be
EASY
A crane with a steel cable of length 11 m and radius 2.0 cm is employed to lift a block of concrete of mass 40 tons in a building site. If the Young's Modulus of steel is 2.0×1011 Pa, what will be roughly the increase in the length of the cable while lifting the block? (Take g=10 m s-2 )
EASY
The dimensions of four wires of the same material are given below. In which wire the increase in length will be maximum when the same tension is applied?
EASY
A wire of diameter 1 mm breaks under a tension of 1000 N. Another wire of the same material as that of the first one, but of diameter 2 mm breaks under a tension of:
MEDIUM
A copper wire of cross-sectional area 0.01 cm2 is under a tension of 22 N. Find the percentage change in the cross-sectional area (Young's modulus of copper =1.1×1011 N m-2 and Poisson ratio =0.32 )
EASY
A steel rod has radius 50 mm and length 2 m. It is stretched along its length with a force of 400 kN. This causes an elongation of 0.5 mm. Find the (approximate) Young's modulus of steel from this information.
MEDIUM
The ratio of the length of two wires a and b of same materials is 1: 3 and the ratio of their diameters is 3: 1 . They are stretched by the same force then the ratio of increases in length will be
EASY
Breaking stress of a steel wire is p and the density of steel is ρ. The greatest length of steel wire that can hang vertically without breaking is
HARD
In plotting stress versus strain curves for two materials P and Q , a student by mistake puts strain on the y -axis and stress on the x - axis as shown in the figure. Then the correct statement(s) is(are)

Question Image
EASY
Which of the following is not a feature of the stress-strain curve for elastic tissue of aorta:
MEDIUM
The stress-strain graphs for materials A and B are shown in the figure.
Question Image
The graphs are drawn to the same scale.
Which of the two is the stronger material?
MEDIUM
What are the important characteristics of the stress-strain curve of the elastic tissue of aorta?
EASY
What is the importance of the large elastic region in the stress-strain curve of the elastic tissue of the aorta?
EASY

What mass of Carbon in grams is present in 0.01 mole of Buckminster fullerene?

Atomic mass of carbon=12 u

HARD
Draw the stress-strain curve for the tissue of the aorta. What is the importance of the area within the curves for loading and unloading?
EASY
Which of the following is correct regarding diad axis of symmetry?
MEDIUM

Represent the union of two sets by Venn diagram for each of the following.

X={x | x is a prime number between 80 and 100}

Y={y | y is an odd number between 90 and 100}

EASY

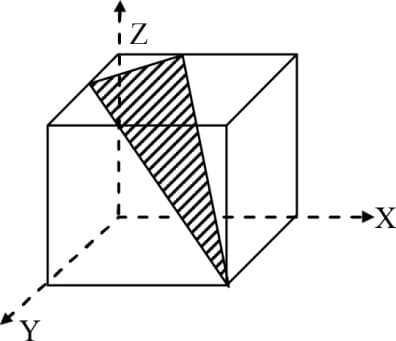

What is the miller indices of the plane in the cubical unit cell shown below?




Question Image
EASY

Determine the region where Hooke’s law is obeyed, the ultimate strength point and fracture point in the given stress-strain graph.

Question Image
