EASY
JEE Advanced
IMPORTANT
Earn 100

Which of the following statement(s) correct ?

100% studentsanswered this correctly

Important Questions on Electric Flux and Gauss's Law

MEDIUM
JEE Advanced
IMPORTANT

Charges Q, 2Q , 4Q are uniformly distributed in three dielectric solid spheres 1, 2, 3 of radii R2, R and 2R  respectively , as shown in the figure. If magnitudes of the electric fields at point P at a distance R from the centres of spheres 1, 2 and 3 are E1, E2, E3 respectively, then :

Question Image

HARD
JEE Advanced
IMPORTANT

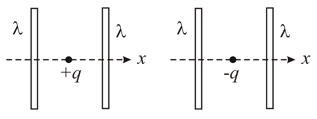

The figure below depict two situations in which two infinitely long static line charges of constant positive line charge density λ are kept parallel to each other. In their resulting electric field, point charges q and -q are kept in equilibrium between them. The point charges are confined to move in the x-direction only. If they are given a small displacement about their equilibrium positions, then the correct statement (s) is (are)

Question Image

MEDIUM
JEE Advanced
IMPORTANT

Consider a uniform spherical charge distribution of radius R1 centered at the origin O. In this distribution, a spherical cavity of radius, centered at P with distance OP=a=R1-R2 (see figure) is made. If the electric field inside the cavity at position r is E(r), then the correct statement is / are:

Question Image

HARD
JEE Advanced
IMPORTANT

A cubical region of side a has its centre at the origin. It encloses three fixed point charges, -q at 0, -a4, 0, +3q at 0, 0, 0, -q at 0, +a/4, 0. Choose the correct option(s).

Question Image

HARD
JEE Advanced
IMPORTANT

Two nonconducting solid spheres of radii R and 2R having uniform volume charge densities ρ1 and ρ2, respectively, touch each other. The net electric field at a distance 2R from the centre of the smaller sphere, along the line joining the centre of the spheres, is zero. The ratio ρ1ρ2 can be:

HARD
JEE Advanced
IMPORTANT

Two nonconducting spheres of radii R1 and R2 and carrying uniform volume charge densities +ρ and -ρ, respectively, are placed such that they partially overlap, as shown in the figure. At all points in the overlapping region,

Question Image

MEDIUM
JEE Advanced
IMPORTANT
Let E1rE2rE3r, respectively, be the electric fields at distance r from a point charge Q, an infinitely long wire of linear charge density λ and an infinite plane with uniform surface charge density σ. If E1r0=E2r0=E3r0 at a given distance r0, then
HARD
JEE Advanced
IMPORTANT

A point charge +Q is placed just outside an imaginary hemispherical surface of radius R as shown in the figure. Which of the following statements is/are correct?

Question Image
