While tracing the path of a ray of light passing through glass slab as shown in the diagram, four students interpreted the results as given below, who has the correct interpretation?

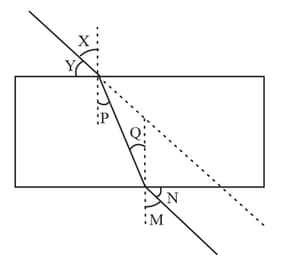

For the refraction through a rectangular glass slab the diagram is given below:

The angle of incidence, angle of a emergence and angle of refraction are respectively

In the adjoining figure, 'S' is the position of the screen on which a sharp image of a distant object (nearly $600 \mathrm{m}$ away from the concave mirror of focal length $10 \mathrm{cm}$) is formed by the mirror 'M'. If the object moves towards the mirror by some distance, say $50 \mathrm{cm}$, then to obtain the sharp image of the object on the same screen again the

Parallel rays, from the top of a distant tree, incident on a concave mirror, form an image on the screen.

The diagram correctly showing the image of the tree on the screen is:

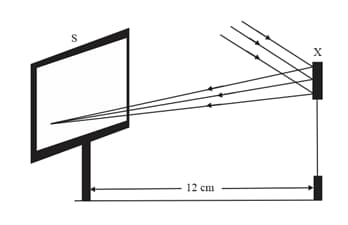

Study the following diagram and select the correct statement about the device 'X':

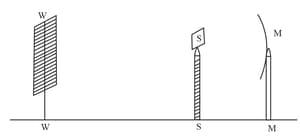

A student obtains a sharp image of the distant window (W) of the school laboratory on the screen (S) using the given concave mirror (M) to determine its focal length. Which of the following distances should be measured to get the focal length of mirror?

A student has obtained a point image of a distant object using the given convex lens. To find the focal length of the lens, he should measure the distance between the:

A student obtained a sharp image of a candle flame placed at the distant end of the laboratory table on a screen using a concave mirror to determine its focal length. The teacher suggested him to focus a distant building, about $1 \mathrm{km}$ away from the laboratory, for getting more correct value of the focal length. In order to focus the distant building on the same screen, the student should slightly move the

AB is the incident ray on a glass slab.

The emergent ray is:
