Ahmed takes circuit $b$ apart and makes a new circuit $d$ . The two lamps are now connected in parallel with each other and the cell.
Draw a diagram of circuit $d$ . Label each of the lamps as ' $1$ ' or ' $2$ '.

Important Questions on Electrostatics and Electric Currents

EASY

Lower Secondary Stage 9

IMPORTANT

Cambridge Lower Secondary Science Stage 9: Workbook>Chapter 9 - Electrostatics and Electric Currents>Exercise 4>Q 8

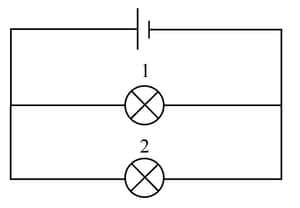

Which of these statements shows the correct relationship between the voltage of the cell and the voltages across lamps $1$ and $2$ ?
Question Image

EASY

Lower Secondary Stage 9

IMPORTANT

Cambridge Lower Secondary Science Stage 9: Workbook>Chapter 9 - Electrostatics and Electric Currents>Exercise 4>Q 9

Blessy uses circuit to test the relationship between the voltage across the cell and the voltages across each lamp.

Write a method for Blessy's investigation. Assume that Blessy has only one voltmeter.

Question Image

HARD

Lower Secondary Stage 9

IMPORTANT

Cambridge Lower Secondary Science Stage 9: Workbook>Chapter 9 - Electrostatics and Electric Currents>Exercise 4>Q 10

Blessy extends her investigation to include circuit $b$ . She also decides to measure the current in each lamp and the cell. Here is a partly completed table of results.

Question Image

Use your knowledge of current, voltage and also series and parallel circuits to complete the table of results with the values you would expect to observe.
